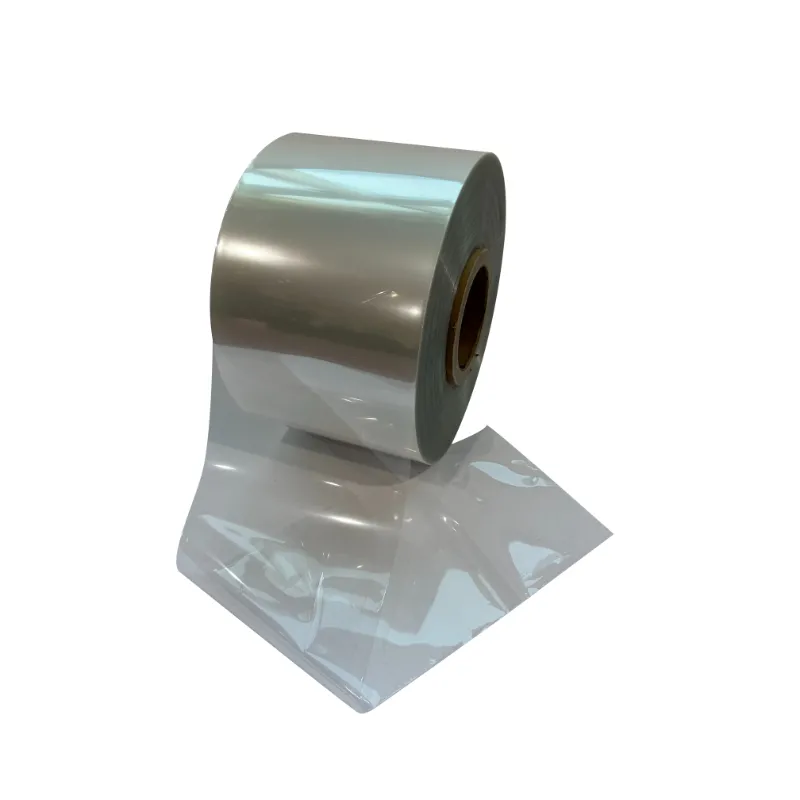

PETG bidirectional shrink film is ideal for making printed shrink wrap labels and washable labels. Our PETG Shrink Films offer high shrink ratio, great printability. High shrink ratio makes them perform well even applied in odd-shaped container. Bidirectional shrink ability makes them suitable for making washable labels.
- Super Clear
- Stable Shrink
- 100% Recyclable
- Excellent Printability
- Shrink in both TD & MD
Certification:
Applications
PETG Biodirectional Shrink Film is ideal for making washable labels.
Data Sheet
| Property | Unit | Value | Test Method | |
| SHB750 | ||||
| Thickness | μm | 40.0 | ASTM D 374 | |
| Density | g/cm³ | 1.32 | ASTM D 1505 | |
| Tensile Strength | MD | Mpa | ≥60 | ASTM D 882 |
| TD | Mpa | ≥200 | ||
| Elongation at break | MD | % | ≥300 | |
| TD | % | ≥30 | ||
| Heat Shrinkage | MD | % | 35 ± 5 | 95℃ 10 Sec, Water Bath |
| TD | % | ≥70 | ||
| Friction Coefficient | μs | ≤0.60 | ASTM D 1894 | |
| μk | ≤0.55 | |||
| Haze | % | ≤7.0 | ASTM D 1003 | |
| Transmittance | % | ≥90 | ASTM D 1746 | |
| Gloss (45°) | % | ≥100 | ASTM D 2457 | |
| Surface Tension | mN/m | ≥38 | ASTM D 2578 | |

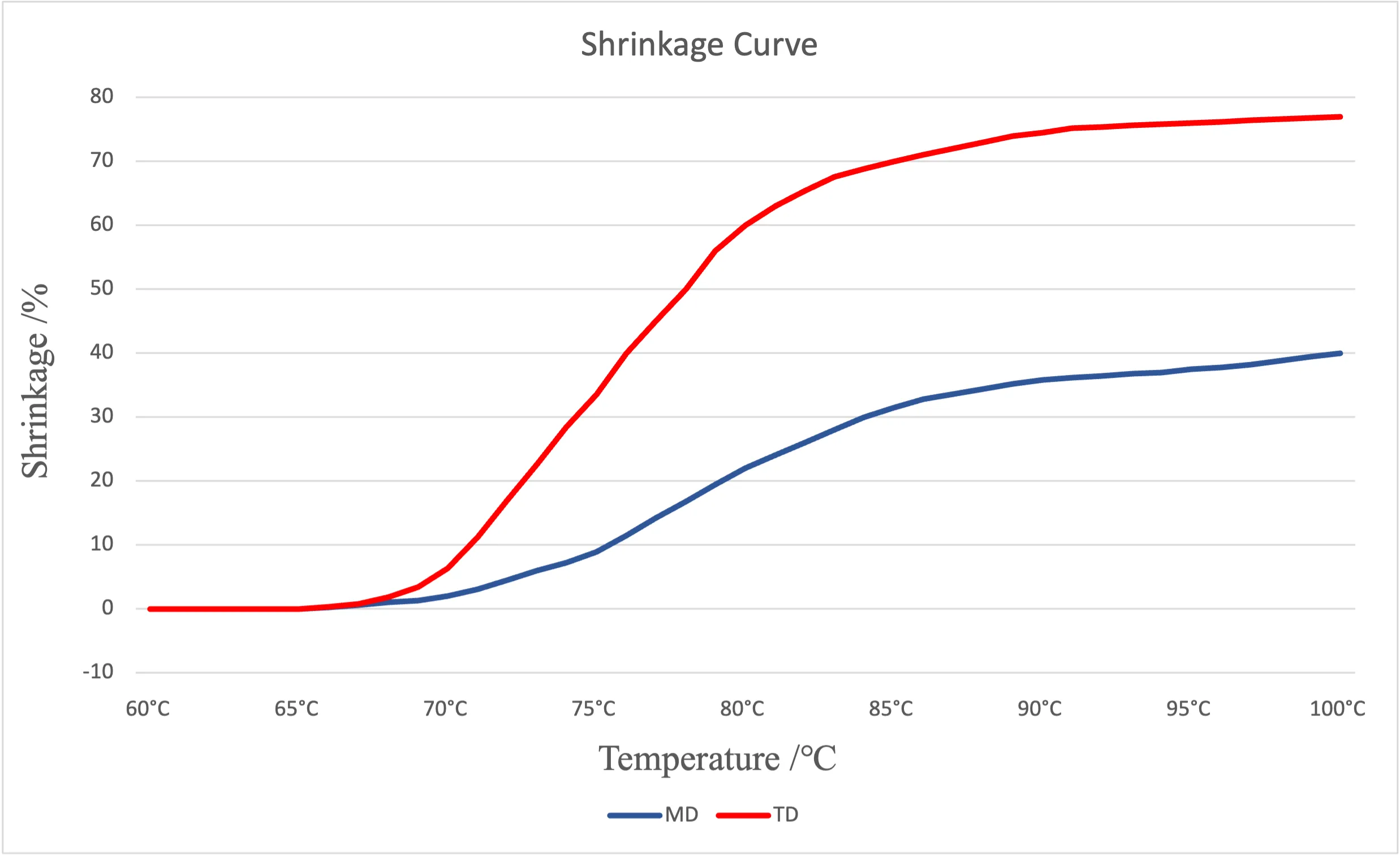

PETG Bdirectional Shrink Film Shrink Curve
Product Specification
We accept custom order.
Thickness:
30micron – 60micron
Width:
200mm – 2000mm
Length:
2000m – 6000m
Q & A
How to print PETG biodirectional shrink film?
Suitable for gravure printing, flexographic printing, UV inkjet printing.
Are JFPolyFilm’s PETG bidirectional shrink films corona treated?
No corona treated, and our shrink film can be easily printed without corona treated.
What’s the glue for PETG bidirectional shrink film when seaming?
The mix of 1,4-Dioxane and 1,3-Dioxolane. Feel free to contact us if more info needed.
How to shrink PETG bidirectional shrink film?
Recommended for using in steam shrink tunnels. Also can be shrink by using boiling water or heat gun.
Can I ask for samples of JFPolyFilm’s PETG bidirectional shrink film?
Yes, depends on your needs, A4 size, 500m length, 2000m length of free sample can be provided.
How JFPolyFilm pack PETG bidirectional shrink films?
Packing Method 1:
Vertical, packing. With 3 inch (76mm) paper core (customer can choose other size). Wrap each roll with polyethylene film, and attach paper board to both side of roll. Depends on roll specification, about 20 Rolls in 1 pallet, Cover whole pallet with heat barrier.
Packing Method 2:
Horizontal packing. Usually for some of large size. With 3 inch (76mm) paper core (Customer can choose other size), Wrap each roll with polyethylene film, and attach wooden board to both side of roll. 6 rolls in 1 pallet, cover whole pallet with heat barrier.
Packing Method 2 is recommended for small specifications.
Is PETG bidirectional shrink film environmentally friendly?
Yes, it’s 100% recyclable, and much more environmentally friendly than PVC.
How to store PETG bidirectional shrink film?
Stored in temperatures below 30℃ (86°F)
Avoid direct sunlight, rapid temperature change, moisture and dust.
